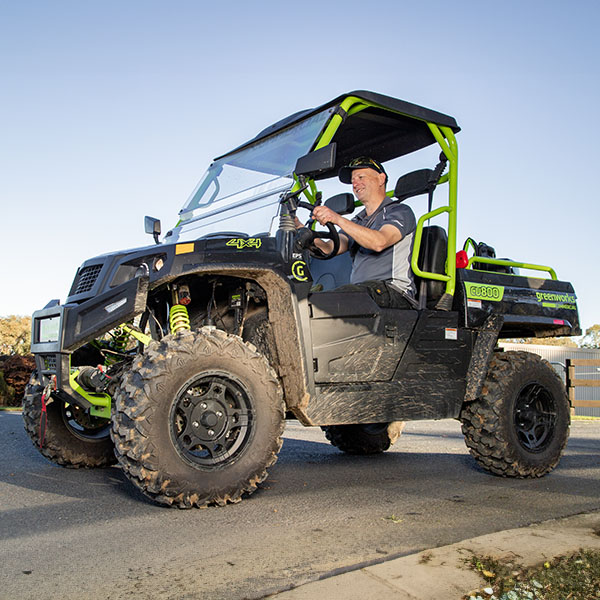

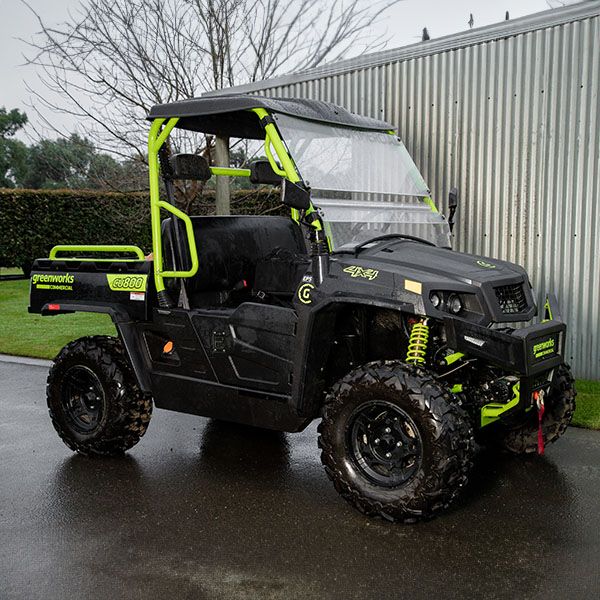

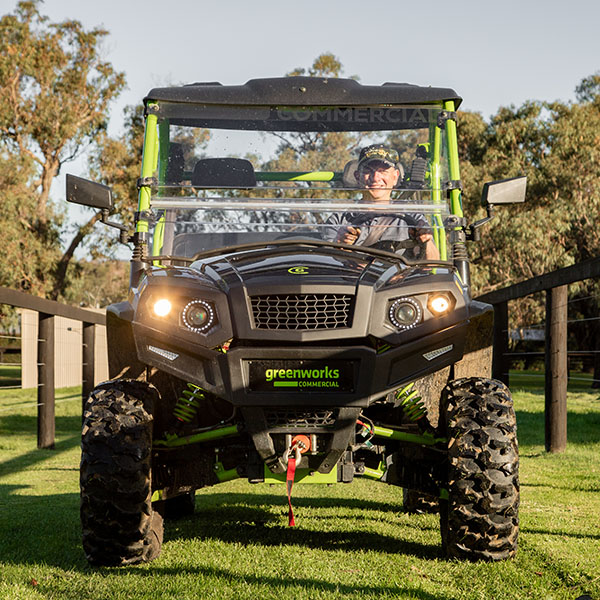

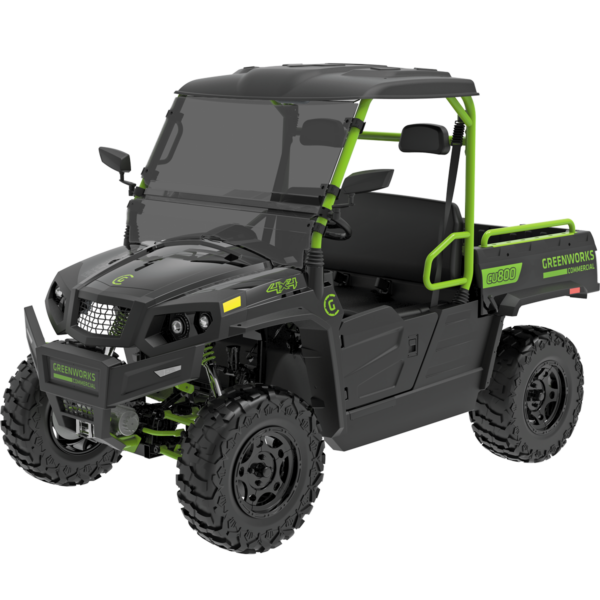

16kWh Utility Vehicle

High powered performance you can count on. The GREENWORKS® commercial utility vehicle (UTV) is designed to go the distance with its powerful 16kW max gTRON drive system, operating with the equivalent power of a 31hp / 496cc displacement petrol engine.

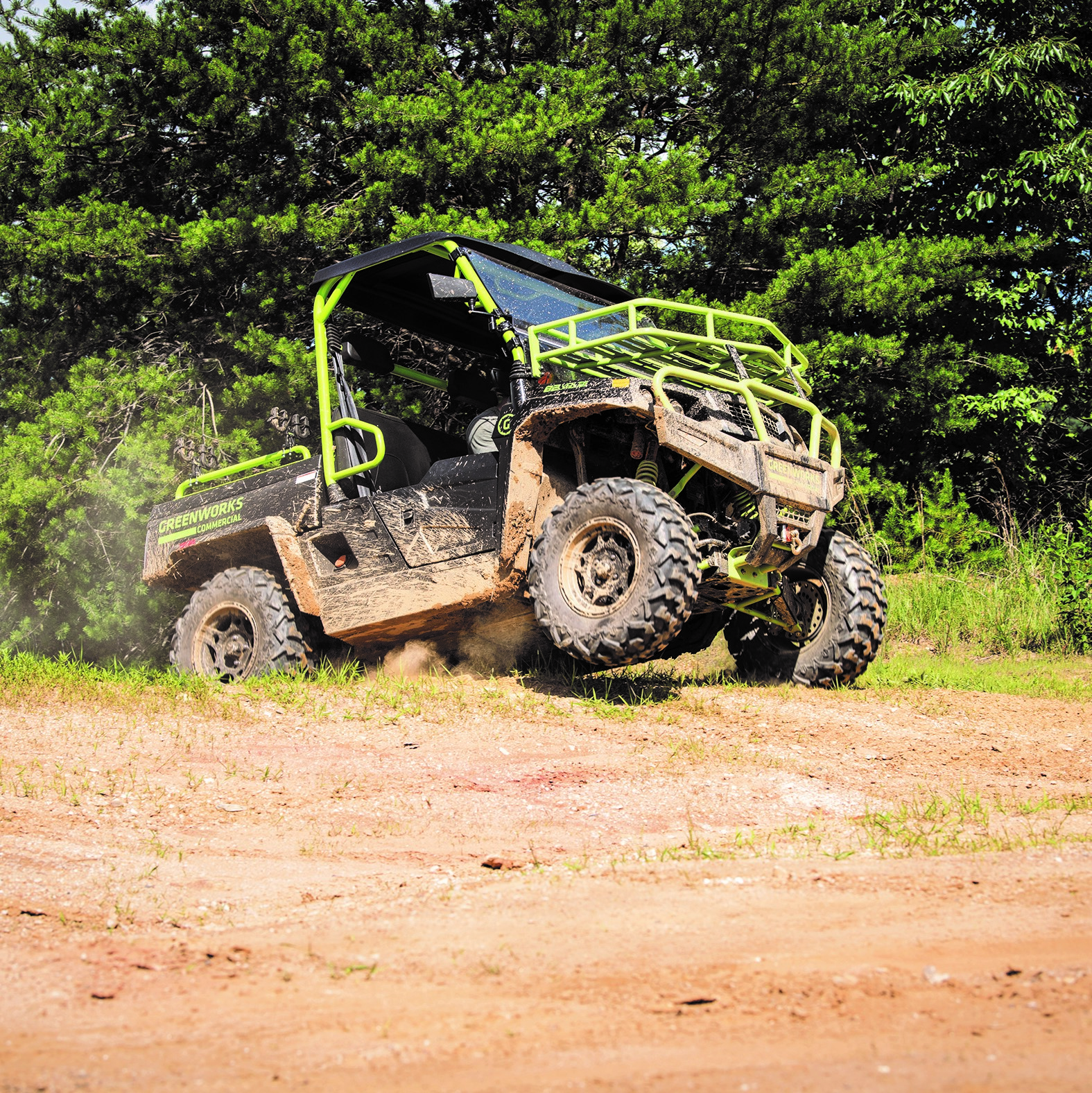

Its 16kWh battery module provides up to an impressive 120km on a single charge for all day use. This vehicle is up for any challenge with superior off-road performance and on-demand 4WD for a true work utility experience.

SKU: 7402807AU Category:

Description

The combination of battery, motor, control and charging systems operating in sync, deliver unmatched power and performance compared to any other petrol or battery powered product. With a network of controllers at its centre, this unit’s nerve system manages the battery, powerful brushless motors and vast information between the vehicle and the user with intelligence, efficiency and responsiveness. This creates a closed loop system that automatically reacts and responds to every changing conditions without requiring user action.

Users can safely and confidently tackle slopes of up to 20° and accelerate to a maximum speed of 47kmph using the intelligent control system which automatically adjusts to various terrain conditions and ensures exceptional traction control and handling in any environment.

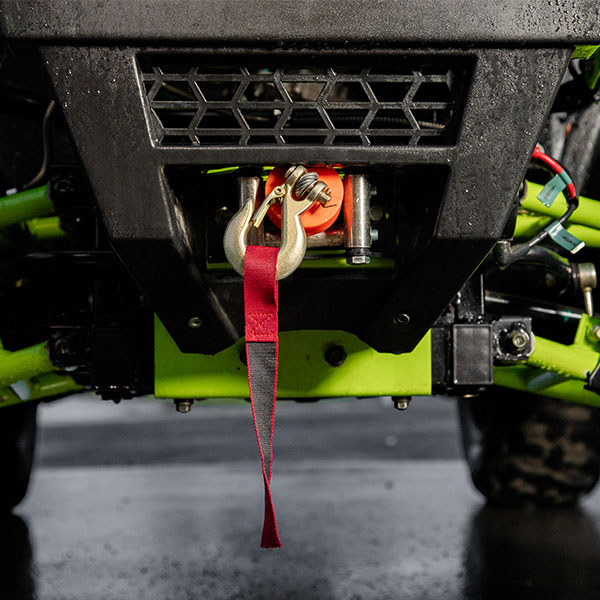

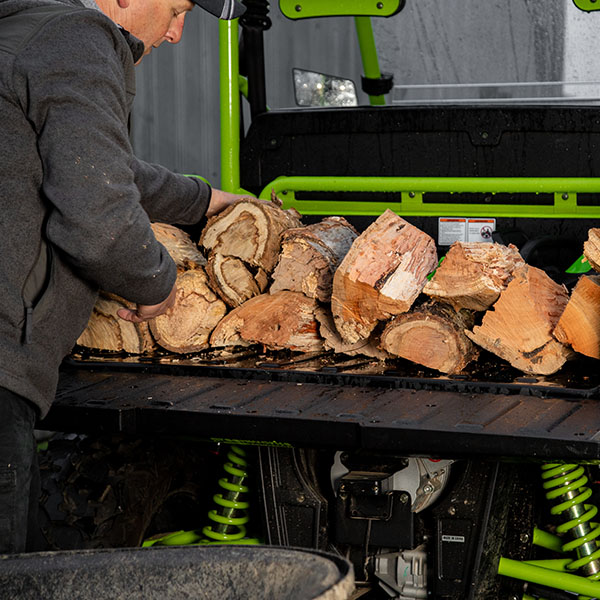

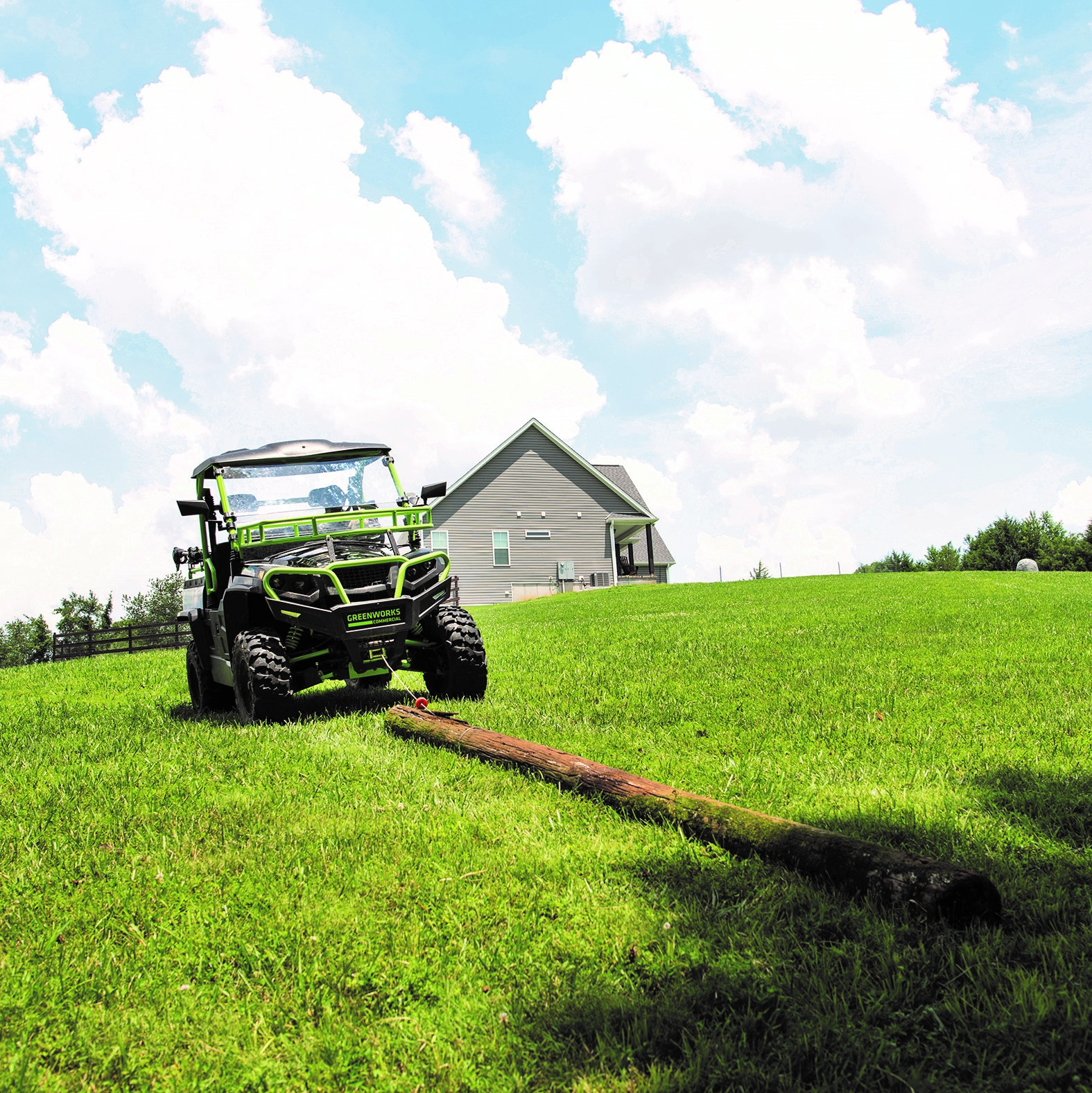

The 254mm (10″) ground clearance and astounding 184cm (72.5″) wheelbase allows for easy handling in any off-road situation and the robust 250kg (550lb) spring assisted dump bed, 454kg (1,000lb) payload capacity, 680kg (1,500lb) rear towing capacity and 1,134kg (2,500lb) front hitch winch make light work of any hauling or transporting job.

Product Specifications

Model

CU800SB

Voltage

82V

Motor Type

AC induction

Max Power Rating

15kW

Wheelbase

184cm (72.5")

Ground Clearance

254mm (10")

Payload Capacity

454kg (1,000lbs)

Tow Capacity

680kg (1,500lbs)

Horsepower

31hp equivalent

Engine Displacement

496cc equivalent

IPX Rating

4

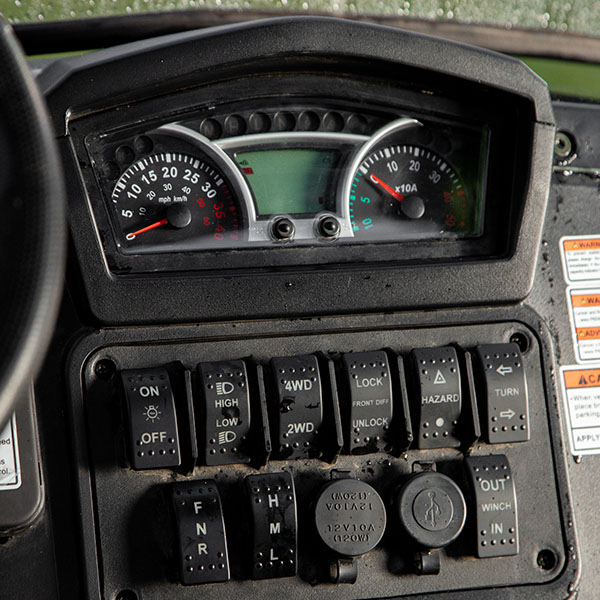

Multi-mode Switch

L/M/H

Main Gearcase

Direct drive

Wheel Drive System

4WD

Front Diff Lock

Electric control

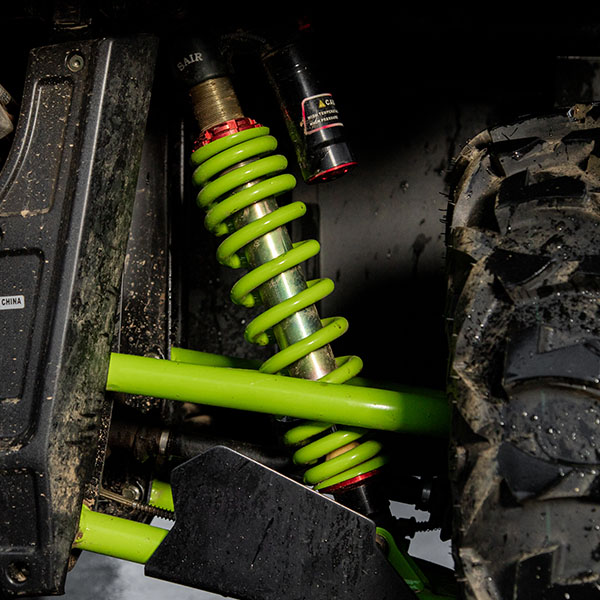

Suspension System

Independent. A-Arm Type

Brakes

(front/rear) Hydraulic disc

Cargo Bed Capacity

250kg (550lbs)

Cargo Bed Dimension (mm, L x W x D)

889 x 1,143 x 305 (35" x 45" x 12")

Ground Speed

Up to 47kmph

Tyres/Wheels

24×9-14 front 24×11-14 rear

Runtime/Range

up to 120km

Weight (w/battery)

795kg

Battery Voltage

82V

Battery Capacity

16kWh

Battery Weight

84.8kg

Charger Charge Watts

1.5kw

Charger Charge Time

11 hours

Charger Weight

2.8kg
