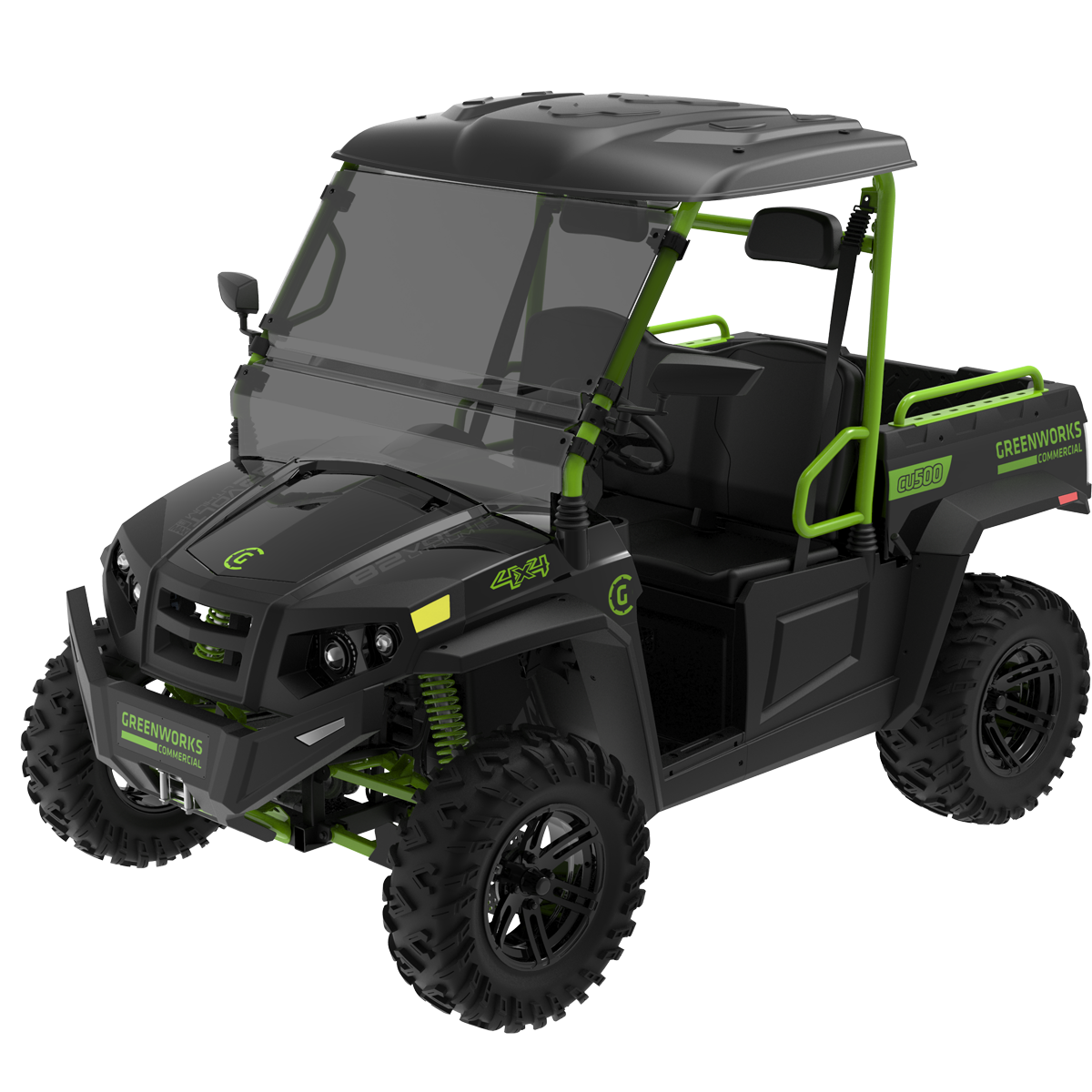

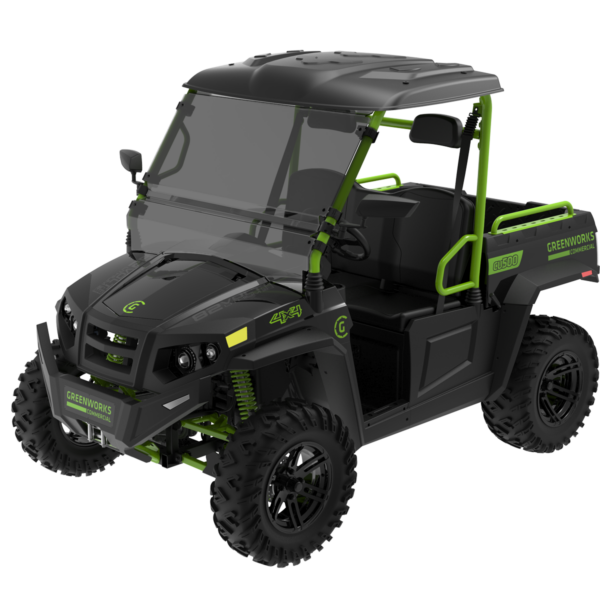

8kWh Utility Vehicle

The GREENWORKS® commercial utility vehicle (UTV) was designed to handle even the toughest terrains with comfort and ease. This dependable workhorse is equipped with a powerful 8kW max gTRON drive system and operates with the equivalent power of a 22hp / 352cc displacement petrol engine.

Its impressive 8kWh battery module provides up to 65km on a single charge for all day commercial use. Users can safely and confidently tackle slopes of up to 20° and accelerate to a maximum speed of 43kph using the intelligent control system which automatically adjusts to various terrain conditions and ensures exceptional traction control and handling in any environment.

SKU: 7402607AU Category:

Description

The 254mm (10″) ground clearance and astounding 184cm (72.5″) wheelbase allows for easy handling in any off-road situation and the robust 150kg (330lb) spring assisted dump bed, 454kg (1,000lb) payload capacity, 567kg (1,250lb) rear towing capacity and 1,134kg (2,500lb) front hitch winch make light work of any hauling or transporting job.

The powerhouse built-in 8kWh lithium-ion battery module processes information extremely quickly ensuring all interconnected systems work to preserve and perform as efficiently as possible. Prismatic cells and safe LFP technology deliver maximum safety and longevity while retaining 70% state-of-charge after 2,000 full charge cycles. High energy density cells, a strong protective aluminium case and increased temperature resistance/ regulation provide protection and performance while operating in extreme conditions. The integrated Battery Management System (BMS) efficiently controls charging, overcharge protection, temperature regulation (battery warm-up/cool down), energy conservation and maximum discharge current.

Product Specifications

Model

CU500SB

Voltage

82V

Motor Type

AC induction

Max Power Rating

15kW

Wheelbase

184cm (72.5")

Ground Clearance

254mm (10")

Payload Capacity

454kg (1,000lbs)

Tow Capacity

567kg (1,250lbs)

Horsepower

22hp equivalent

Engine Displacement

352cc equivalent

IPX Rating

4

Multi-mode Switch

L/M/H

Main Gearcase

Direct drive

Wheel Drive System

4WD

Front Diff Lock

Electric control

Suspension System

Independent. A-Arm Type

Brakes

(front/rear) Hydraulic disc

Cargo Bed Capacity

150kg (330lbs)

Cargo Bed Dimension (mm, L x W x D)

813 x 1,067 x 305 (32" x 42" x 12")

Ground Speed

Up to 43kph

Tyres/Wheels

24×8-12 front 24×8-13 rear

Runtime/Range

up to 65km

Weight (w/battery)

661kg

Battery Voltage

82V

Battery Capacity

8kWh

Battery Weight

84.8kg

Charger Charge Watts

1.5kw

Charger Charge Time

7 hours

Charger Weight

2.8kg
